Parker VX065-75 and VX165-90 O-Rings Deliver Extreme Low Temperature Performance




Parker’s VX065-75 and VX165-90 are FKM O-rings known for extreme low temperature performance in industrial applications that require -65° sealing capability. While VX065-75 is particularly advantageous in the aerospace industry, and VX165-90 meets the demands of the oil and gas industry, both are characterized by notable compression set and chemical resistance common to fluorocarbons.

Zatkoff is pleased to introduce these innovative products into our current FKM compound lineup. In partnering with Parker to consistently deliver sealing solutions across industries, we proudly offer reliable, long-term access to best-in-class performance.

Parker VX065-75 O-Ring

Parker VX065-75

Parker VX065-75 is distinguished by its equally impressive performance in both low and high temperature conditions. VX065 provides an extended sealing life thanks to its incredible physical properties. Rivaling the low temperature flexibility of a fluorosilicone, VX065 performs extraordinarily well at high altitudes and during engine startup. With a wide temperature range of -65°F to 400°F, VX065 offers excellent performance qualities in meeting aerospace industry demands.

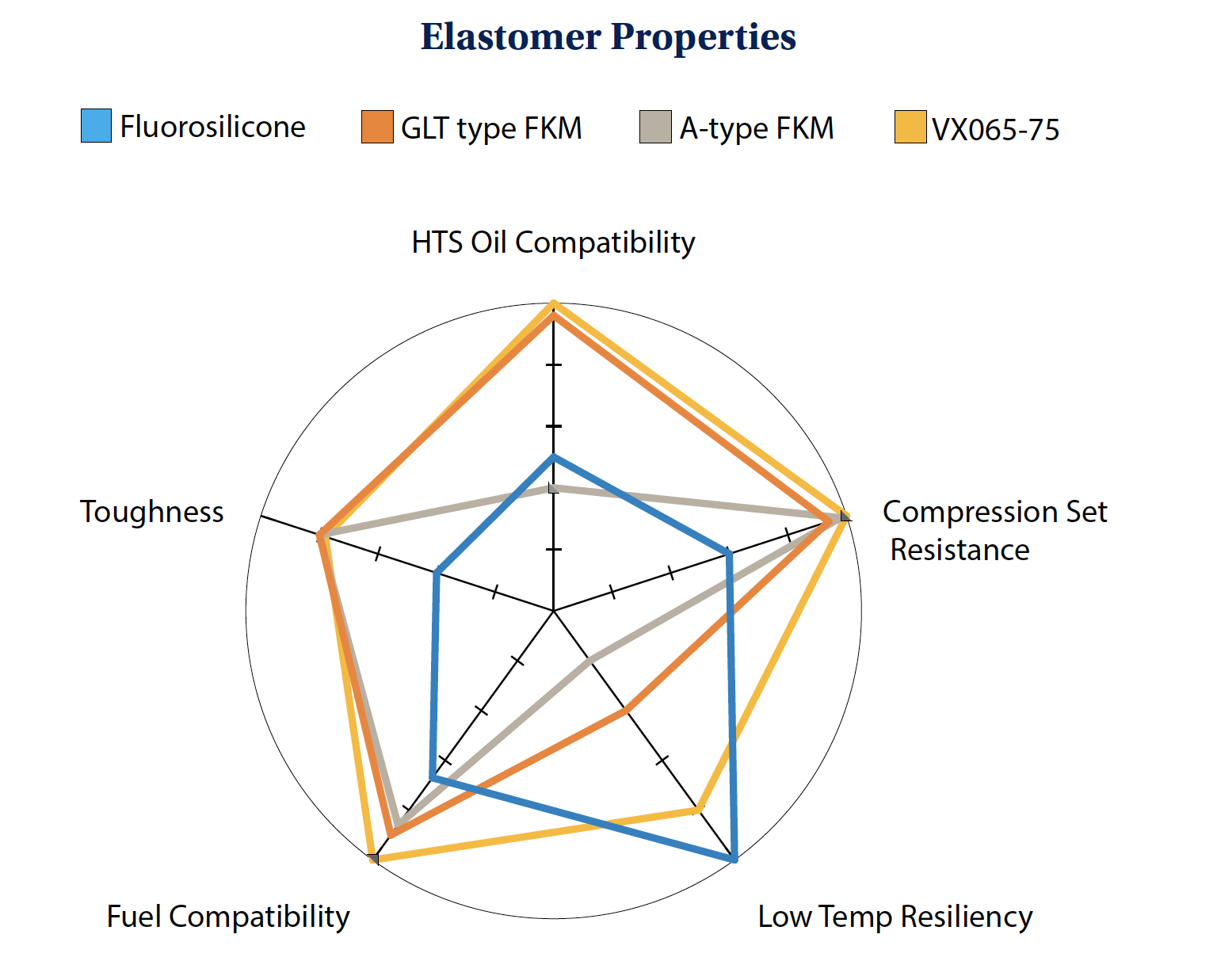

As seen here, VX065-75 possesses elastomer properties that allow it to outperform other types of fluorosilicone, GLT, and A-type FKM compounds in HTS oil compatibility, toughness, fuel compatibility, low temperature resilience, and compression set resistance.

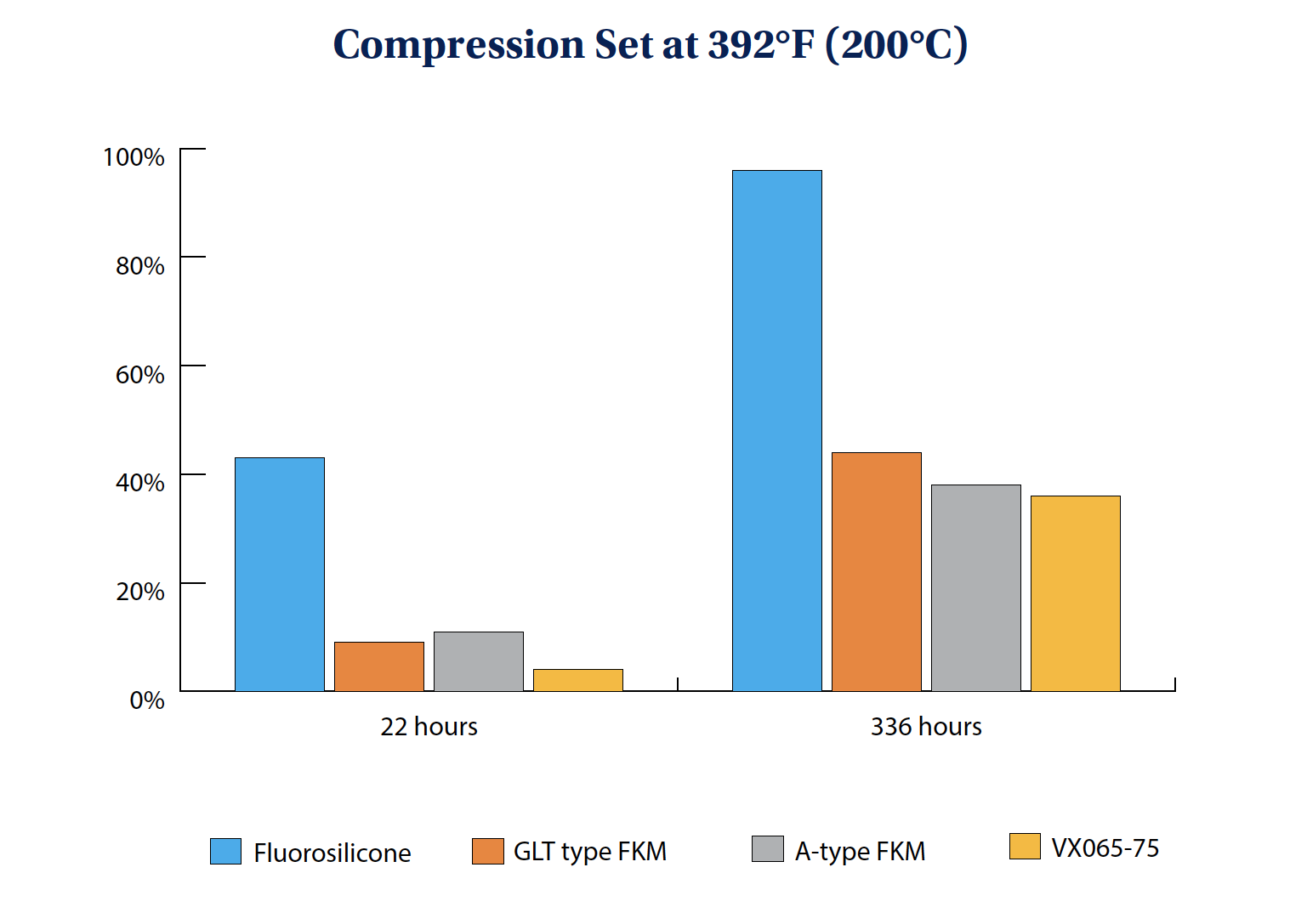

VX065 Graph 1
VX065 Graph 1

Product Features

  • Excellent Compression Set Resistance
  • Extreme Low Temperature Performance
  • 75 Shore A Durometer
  • Excellent Jet Fuel Compatibility
  • Excellent HTS Oil Compatibility
  • FKM Durability
  • Temperature Resistance
    • Up to 400°F (204°C) and higher temperatures with shorter life expectancy
    • Down to -65°F (-54°C) for static applications and -50°F (-26°C) for dynamic applications
  • Chemical Resistance
    • Mineral oil and grease, ASTM oil No. 1, and IRM 902 and IRM 903 oils
    • Non-flammable hydraulic fluids (HFD)
    • Excellent jet fuel & HTS oil compatibility
    • Aliphatic hydrocarbons (butane, propane, natural gas)
    • Aromatic hydrocarbons (benzene, toluene)
    • Chlorinated hydrocarbons (trichloroethylene and carbon tetrachloride)
    • Gasoline (including high alcohol content)
    • Very good ozone, weather, and aging resistance
    • Lower temperature alternative for GLT Type, AMS-R-83485, HTS Turbine Oils
Parker V165-90

Parker VX165-90

VX165-90 meets the oil and gas industry’s demand for both low temperature performance under arctic conditions and impressive high temperature stability. Due to its abilities to maintain low compression set values and significantly extend sealing life, VX165-90 offers optimal FKM performance. In addition, this incredible product possesses excellent physical properties, chemical compatibility, rapid gas decompression, and sour service (H2S) resistance. With a wide temperature range of -65°F to 400°F (-54°C to 204°C), VX165 delivers exceptional performance in meeting sealing demands of the oil and gas industry.

Product Features

  • Excellent Compression Set Resistance
  • Extreme Low Temperature Performance
  • 90 Shore A Durometer
  • RGD Resistant
  • H2S Resistant per ISO 23936-2
  • Temperature Resistance
    • Up to 204°C (400°F) and higher temperatures with shorter life expectancy
    • Down to -54°C (-65°F) for static applications
  • Chemical Resistance
    • Mineral oil and grease, ASTM oil No. 1, and IRM 902 and IRM 903 oils
    • Non-flammable hydraulic fluids (HFD)
    • Silicone oil and grease
    • Mineral and vegetable oil and grease
    • Aliphatic hydrocarbons (butane, propane, natural gas)
    • Aromatic hydrocarbons (benzene, toluene)
    • Chlorinated hydrocarbons (trichloroethylene and carbon tetrachloride)
    • Gasoline (including high alcohol content) and Diesel
    • Very good ozone, weather, and aging resistance
    • Methanol, Zinc Bromide
  • Certifications
    • 2% H2S Resistant per ISO 23936-2

At Zatkoff Seals & Packings, we take pride in providing an extensive inventory of Parker products that provide powerful sealing solutions in a variety of industries. Contact us to learn more about how our products and services can meet your industrial needs.
